Steel
Flat Top Wedge
Great Looks, Great Specs, Great Price

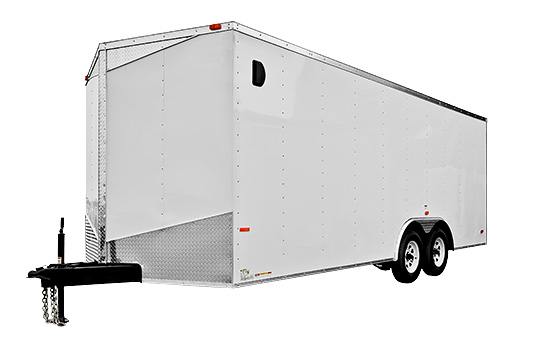

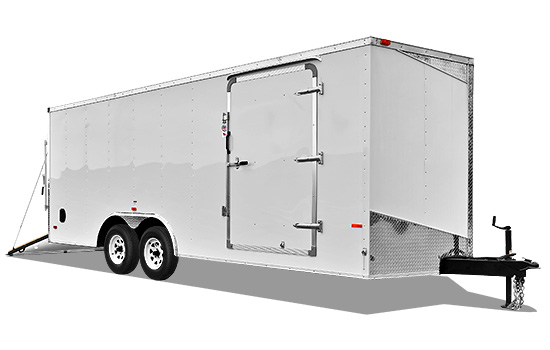

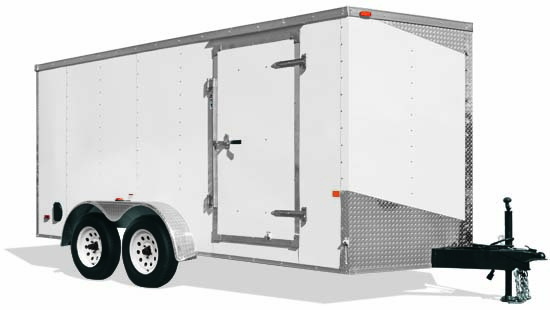

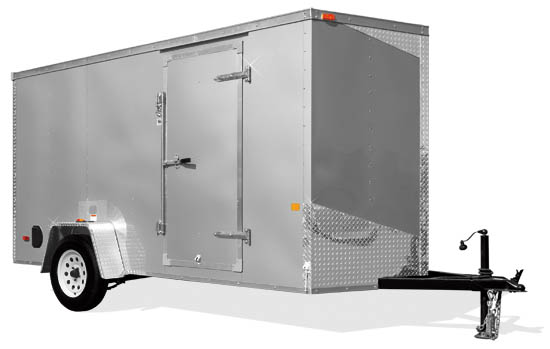

The RWT is available in a variety of sizes, ranging from a compact 4’ wide x 6’ long, to a spacious 8.5’ wide x 34’ long. Hitch options are expansive, from your standard 2” coupler on single axles to 3rd Member Tongue on Tandem 5,200 lb. axles—see product details for more information. This trailer is also available in aluminum.
Hitch
- 2″ Coupler – Single Axle Models
- 2-5/16″ Coupler – Tandem Axle Models
- 2,000 lb. Top Wind Jack w\Sand Pad
- Safety Chains
Axle
4′, 5′, 6′, 7′ Wides
- 4′ Wide SA Models – 2,900 lb. Spring Idler Axle
- 5′ – 7′ Wide SA Models – 3,000 lb. Spring Idler Axle
- SAE Models – 3,500 lb. Spring Brake Axle
- TA2 Models – 3,500 lb. Spring Brake Axles
8.5′ Wides
- TA2 Models – 3,500 lb. Spring Brake Axle
- TA3 Models – 5,200 lb. Spring Brake Axle
Tires and Rims
- ST205/75D15 Bias w\White Wheels on 2,900 lb., 3,000 lb, and 3,500 lb. axles
- ST225/75R15 Radial w\White Wheels on 5,200 lb Axles
Frame
- 24″ On Center Floor, Roof, and Walls
- Note: 16″ On-Center Floor with TA3 Axles and Up
- 18″ Wedge Nose
- Undercoated Frame
Side Door – All Doors with NO Step
4′, 5′, 6′, 7′ Wides
- 4′ Wide – No Side Door
- 24″ Door w\Barlock on 8′ Long Models”
- 32″ Door w\Barlock on Other 5′ & 6′ Wide Models
- 36″ Door w\Barlock on 7′ Wide Models
8.5′ Wides
- 36″ Door w\Barlock on 16′ and Shorter Models
- 48″ Door w\Barlock on 18′ and Longer Models

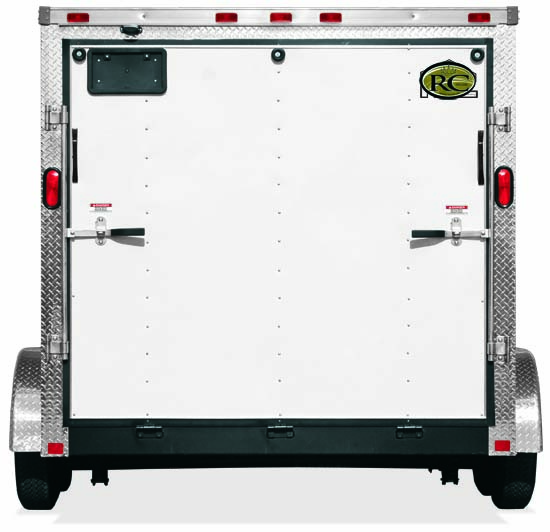

Rear Door

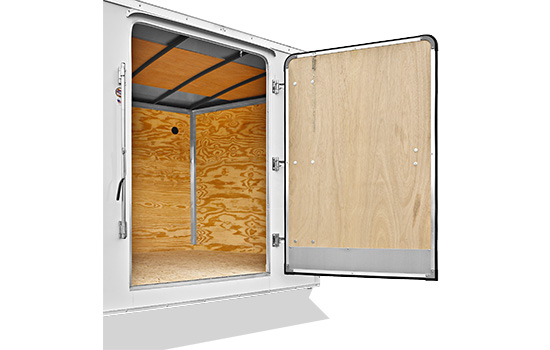

- 4’ – Single Door
- 5’ – Single Door – Double Door – *Light Duty Ramp Door
- 6’ – Double Door – *Light Duty Ramp Door
- 7’ – Double Door – *Light Duty Ramp Door
- 8.5’ – Double Door – 3,000 lb. Ramp Door
- *Light Duty Ramp Door has a 1,000 lb. capacity.

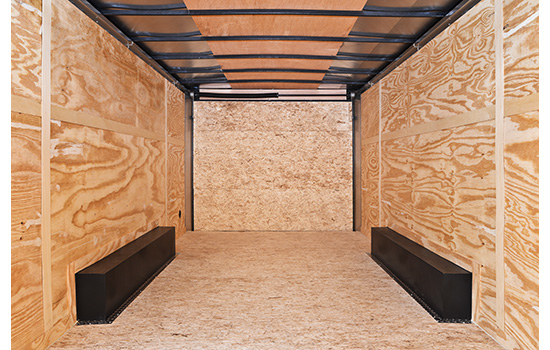

Interior
- 3/4″ Engineered Wood Flooring
- 3/8″ Plywood Walls Trimmed with Lauan
Interior Heights
- 4′ Wides – 4′
- 5′ Wides – 5′-6″
- 6′ Wides – 6′
- 7′ Wides – 6′
- 8.5′ Wides – 6′ 6″
Exterior
- Flow-Thru Sidewall Vents
- .030 Exterior Metal
- Inverted ATP Stoneguard
- Galvanized Steel Roof
- Mill Finish Rear Corners and Header
- ATP Fenders
- 1-1/2″ Lower Trim
- 3″ Top Rail
Electrical

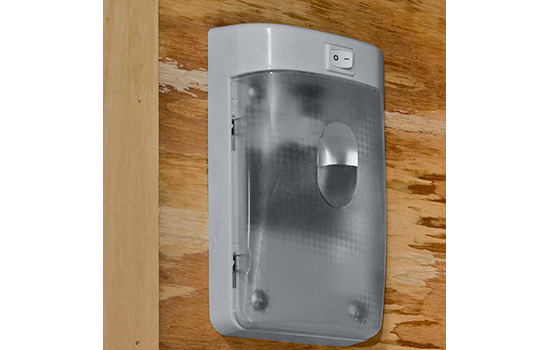

- (1) 12-Volt LED Dome Light
- 4-Way Plug on Idler Axles
- 7-Way Plug on Electric Brake Axles
- Breakaway Box, Battery, & Switch
- LED Strip Tail Light/Brake Lights, Surf Mounted
- LED Surface Mounted Clearance Lights

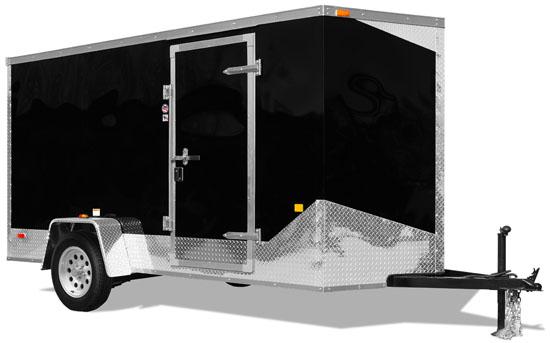

- Upgrade to Torsion Axle from 3000#, 3500# or 5200# Spring Axle
- Upgrade to Torsion Axle from 6000# Spring Axle
- 16″ Wood Flap Added to Light Duty Ramp Door
- Flush Lock Side Door Lock
- (1) Piece Aluminum Roof
- Light-Duty Stabilizer Jacks Pair

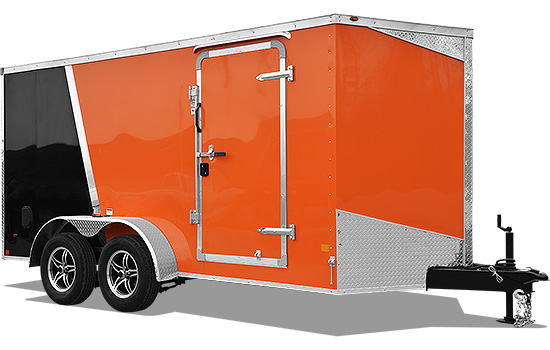

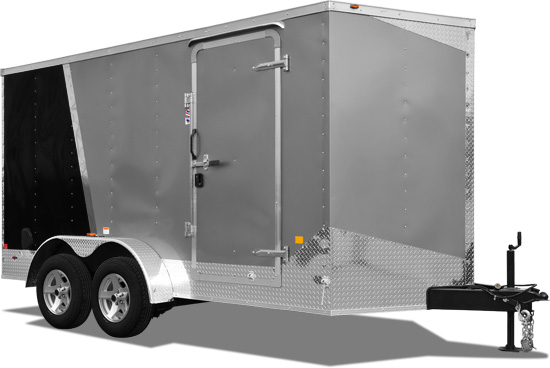

- Two-Tone Without Bright Stripe

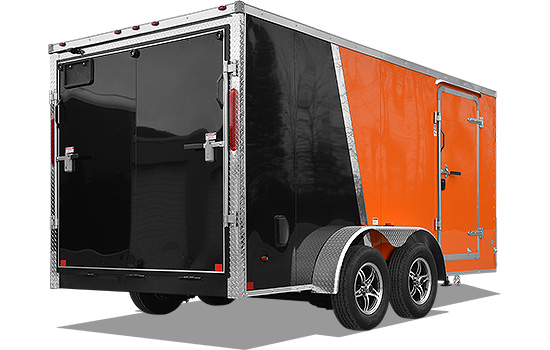

- Two-Tone With 4″ Bright Stripe
- Radial Tires In Place of Bias-Ply Tires Tire
- Brown Lauan Ceiling
- Add Insulation to Ceiling
- ATP Flooring, White Vinyl Ceiling, Plywood Ceiling, Ceiling Insulation
- Exterior Metal Upgrade

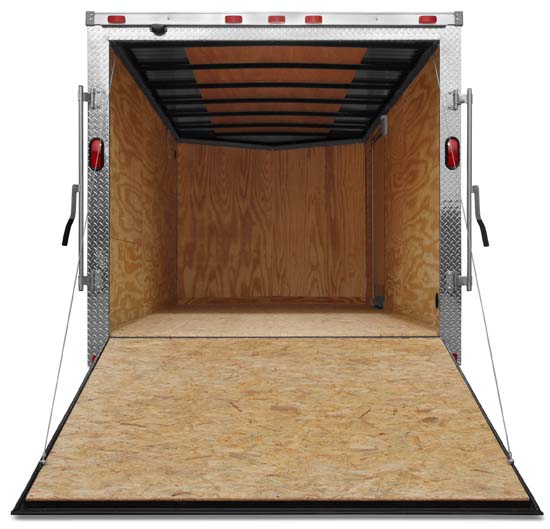

Ramp Door Option
- Upgrade From Light Duty Ramp Door to Standard Duty Ramp Door.
- Note: Light Duty Ramp Doors MUST be upgraded to a Standard
- Duty Ramp door when adding more than 12″.
